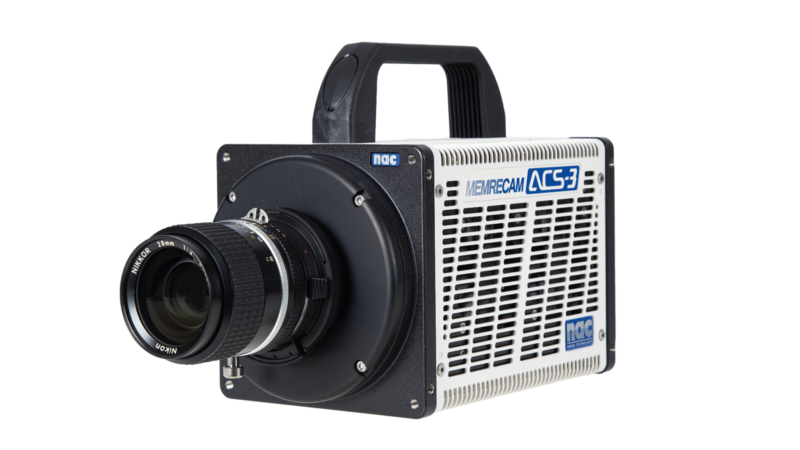

Excellence Packed into a Compact Body. The next era in high-speed cameras.
- Megapixel resolution at 16,000fps / 30,000fps*1 / 50,000fps*2
*1 In Boost mode
*2 In Boost4 mode - Ultra-high light sensitivity (ISO 100,000 for monochrome and 20,000 for color)
- The image Trigger is a unique function that automatically triggers the camera by detecting a small brightness change
- Easy synchronization of multiple ACS-3 cameras
- HDR mode available
- Resolution 1280 x 896 @ 50,000 fps
High Speed / High Resolution
1280 X 896 (1M Pixel)
Megapixel resolution at 16,000fps / 30,000fps*1 / 50,000fps*2
*1 In Boost mode
*2 In Boost4 mode
Faster Data Transfer
Fast Data Transfer USB3.0B
Fast Data Transfer to Optional SSD
High Sensitivity / High Quality
Color ISO ~40,000 / Mono ISO ~200,000
Superior High Dynamic Range
User Selectable Bit Depth
Compact housing
Dimension: 128W x 128H x 206D mm
Weight: Approx. 4.5kg
